GoBoard Point Drain Shower Pan Kit is used for curbed or curb-less applications and is great for new shower build-outs or tub to shower conversions.

Product Details

GoBoard Shower Pan Kit

Product Long Description
The Johns Manville GoBoard® Shower Pan Kit is a durable, waterproof, versatile kit that offers easy, on-site shower pan customization allowing for same day tile and and is ideal for both the Pro and DIYer. It is great for new shower build-outs or tub to shower conversions and accommodates center and offset drain locations, and curbed or curbless applications. Pair your project with GoBoard Tile Backer Boards for walls, ceilings and floors to complete your shower project.

Features

GoBoard Shower Pan Kit

Features

Fast Installation
When using GoBoard Point Drain kit and sloped GoBoard Wedges, there is no need to wait for specially sized pans. Waterproof the seams, take a break, then come back to tile the same day. Grout the next day and the project is done.

Ultra-Lightweight Engineered for durability even though it’s ultra-lightweight. The GoBoard Shower System can be installed in residential tile applications

Easy To Cut, Handle and Install GoBoard Wedge and GoBoard Curb can be quickly cut right where it’s installed with a basic utility knife without crumbling or disintegrating.

Waterproof Core GoBoard Shower Pan saves time and money because you seal only the board joints for a waterproof tile assembly.

Discover The Possibilities

 TILE INSTALLATION USING GOBOARD

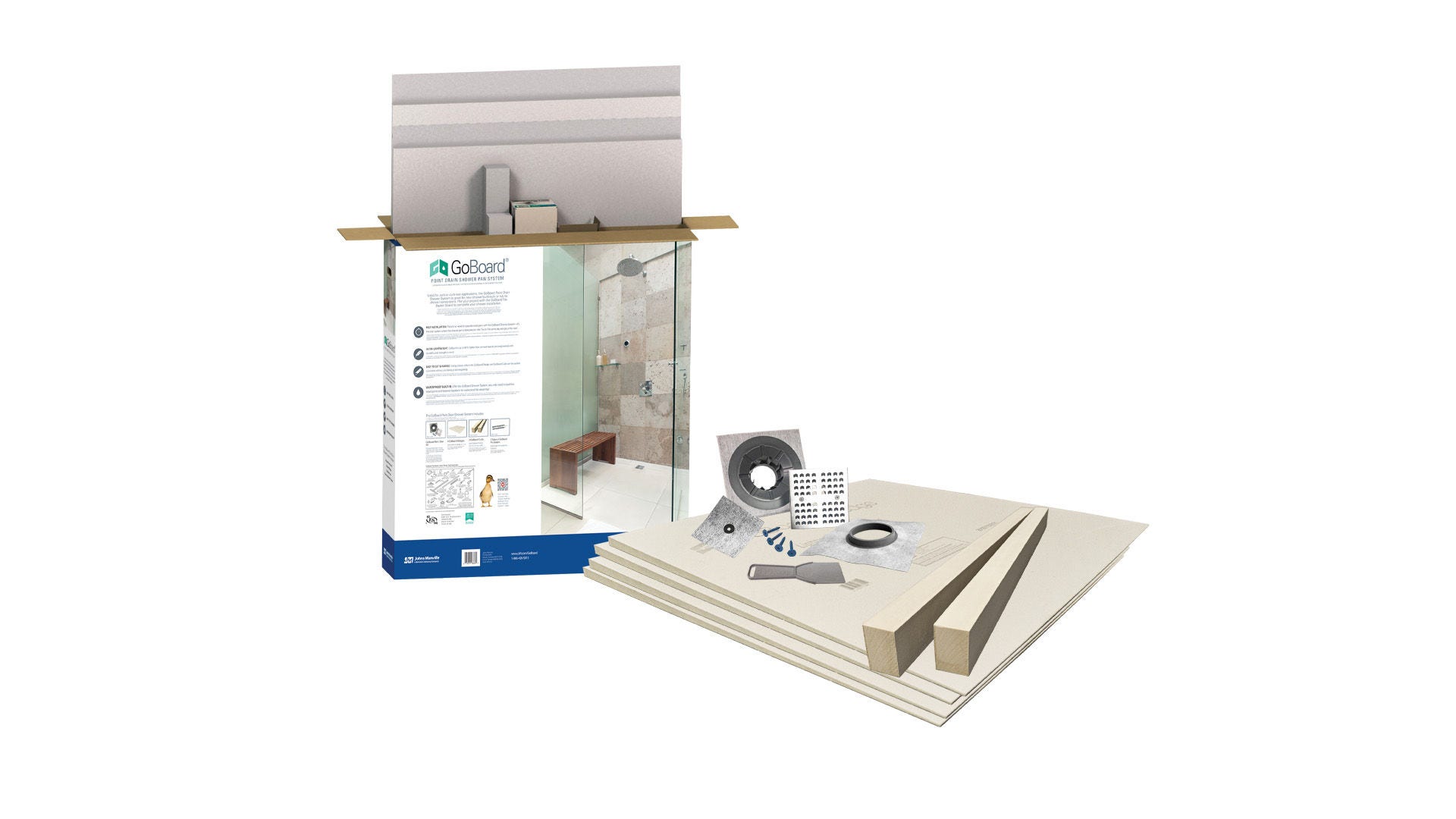

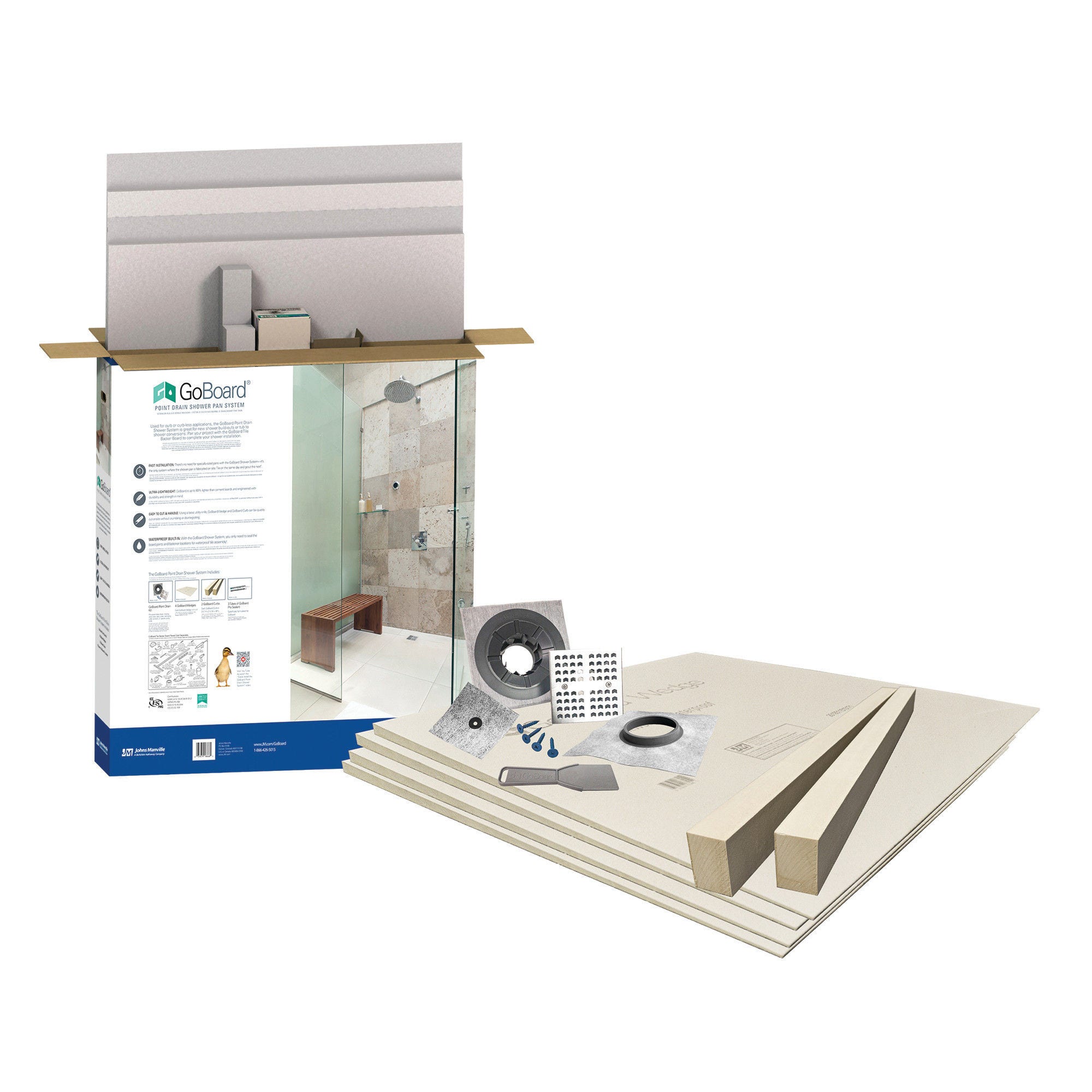

GoBoard Shower System from Johns Manville is a time saving versatile shower system, and it's the right choice for both DIYers and pros. GoBoard Shower Pan System components include:

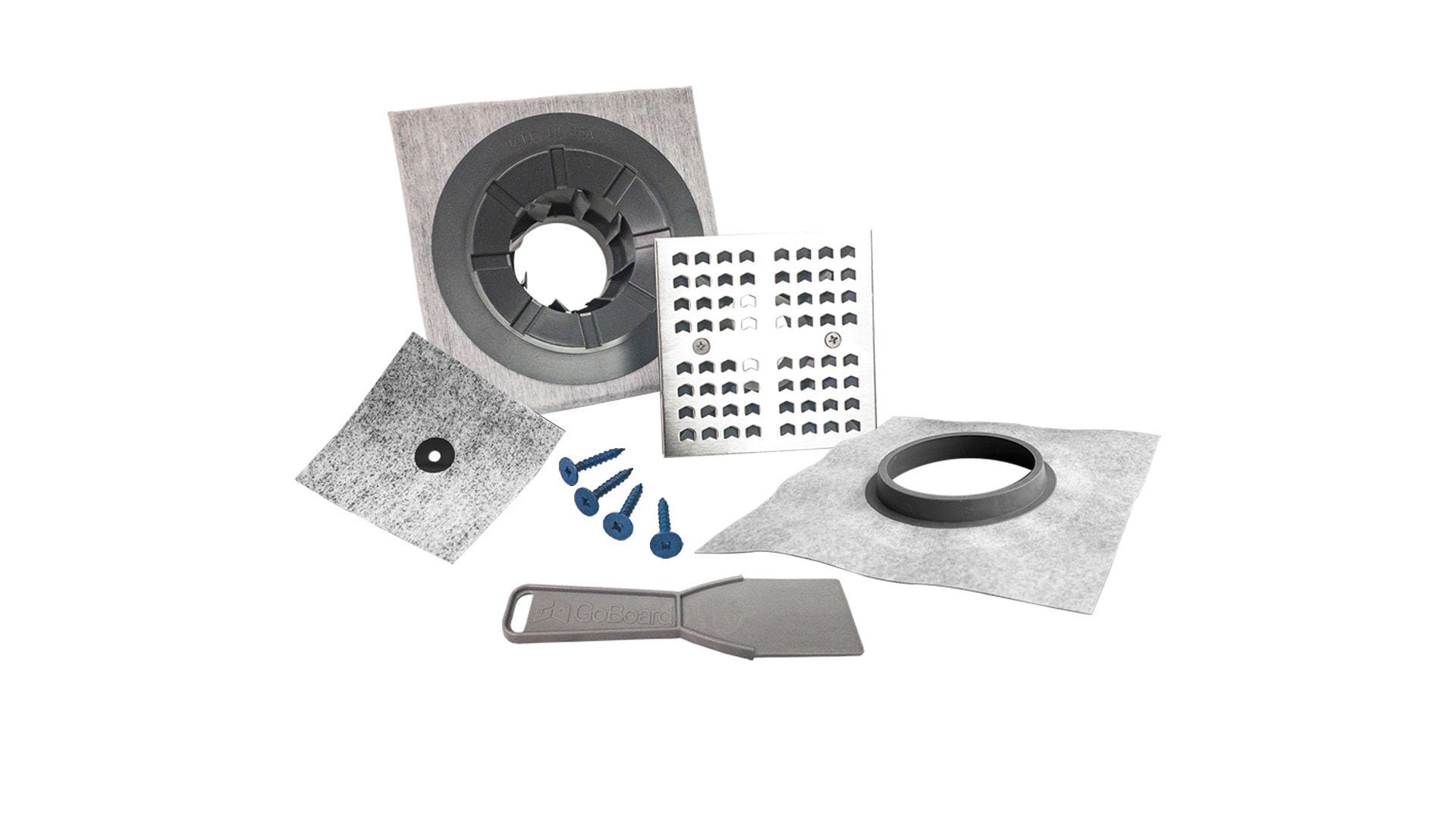

  • GoBoard Point Drain Kit

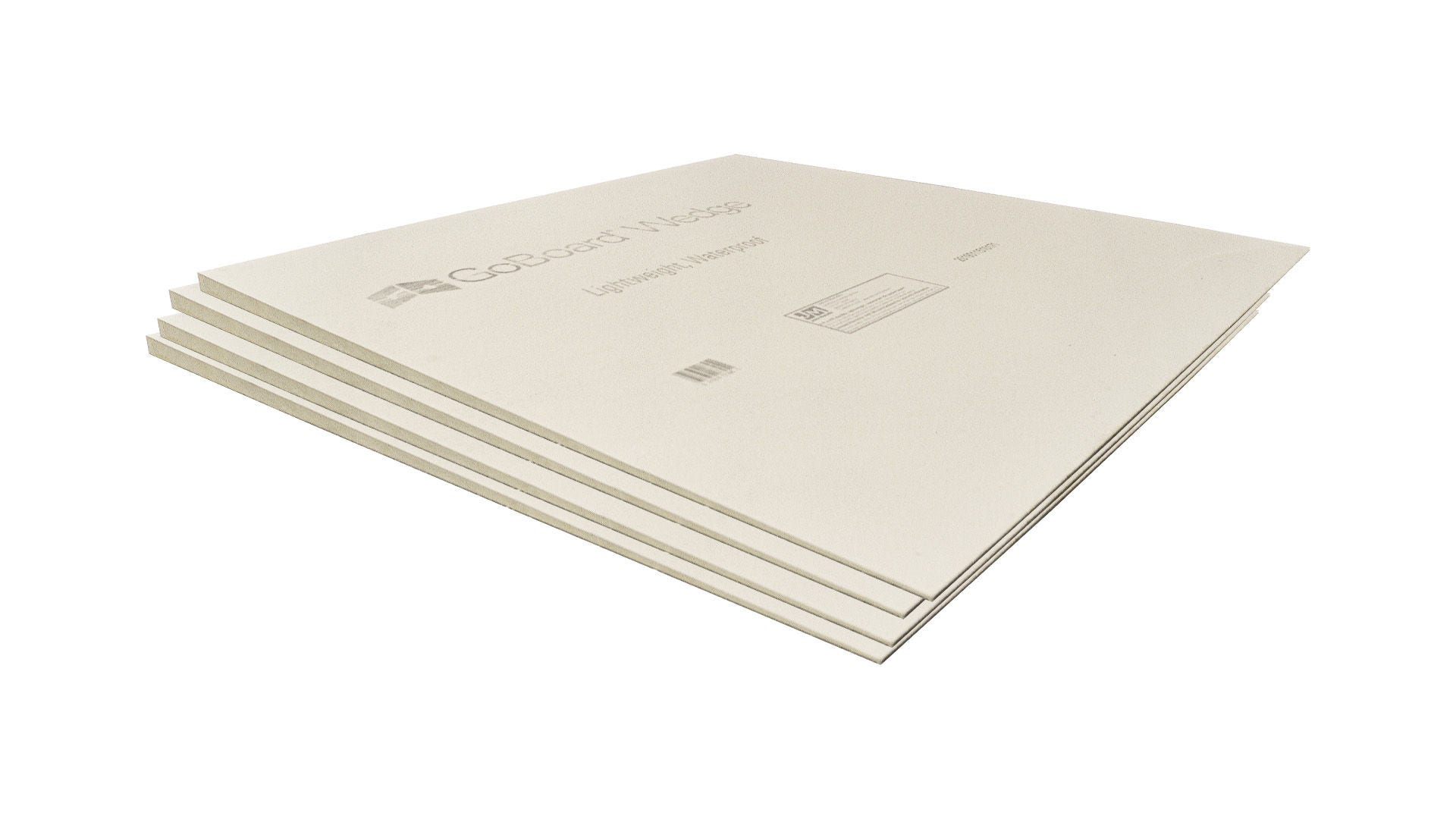

  • Four GoBoard Wedges

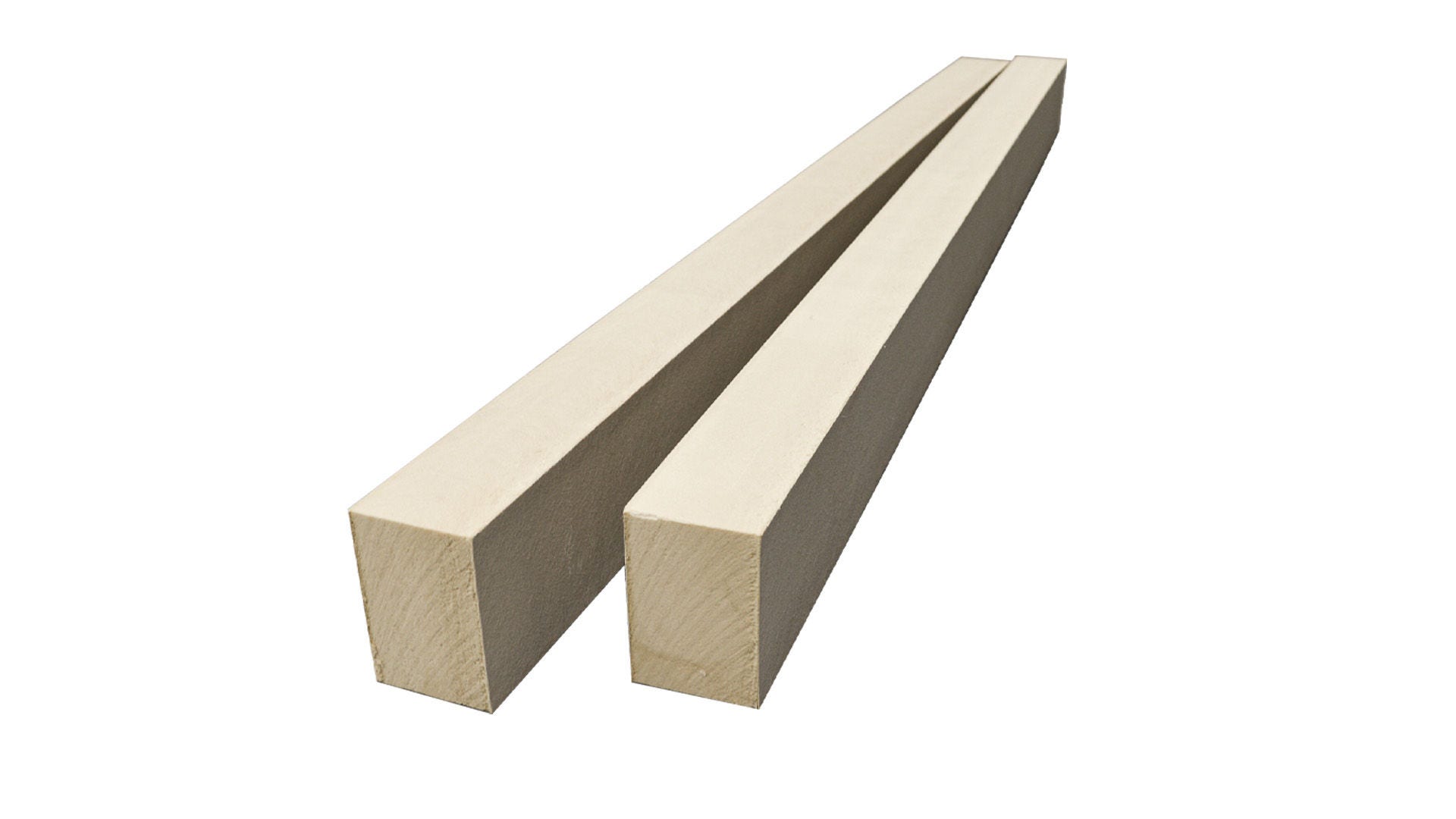

  • Two GoBoard Curbs

Documents

GoBoard Shower FAQs

LET'S TALK TILE™

Check here for the most frequently asked questions about GoBoard Shower System. Reference our technical documents  below to read our technical data sheets, installation instructions, and product certificates. More questions are answered in our brochure.

GoBoard Installed In Shower

Installation

GoBoard Shower Pan Installed

VERSATILE AND TIME SAVING SHOWER PAN SYSTEM

GoBoard Point Drain Shower Pan system is used for curbed or curb-less applications and is great for new shower build-outs or tub to shower conversions.

SITE PREPARATION

Walls:

Install 1/2-in (or 5/8-in) GoBoard to wall studs using GoBoard Fasteners spaced every 8-in or GoBoard Washers spaced every 12-in while leaving 1/8-in gaps between the subfloor and bottom edge of GoBoard and all board joints. Fill all gaps with GoBoard Sealant or GoBoard Pro Sealant and spread excess sealant with a putty knife at least 1-in from either side of the joint. For the joint near the subfloor, spread the sealant roughly 2-in up from the subfloor. For more detailed instructions, please visit the GoBoard Tile Backer product page.

Wood Subfloor:

Make sure the floor is level. A level floor is required for proper installation. Measure and find the center of the shower pan area (or as close to the center as the framing will allow). Using these measurements, mark the center of what will be the drain hole. For possible layouts visit the GoBoard Wedge product page.

Cut a 5-in diameter hole with a jig-saw, hole saw, or other means. For remodels, ensure the existing drain location fits within the layouts and dimensions found on the GoBoard Wedge product page. The top of the waste pipe MUST be at least 1 5/8-in below the top of the subfloor. For remodels, cut the existing waste pipe as needed using an inside pipe cutting tool.

Concrete Slab Subfloor:

Ensure the cement (concrete) slab in the shower pan area is level. Use SLU as needed, in order to level the shower pan area.

Begin by breaking the concrete around the waste pipe to produce a hole that is roughly 5 1/2-in to 6 1/2-in in diameter, around the waste pip. The hole should be centered with the waste pipe. Use a tape measure to ensure the hole size is within this range, measuring in several locations.

Using a speed square and tape measure, continue to dig out the depth of the hole around the pipe. The recommended depth is 3-in while the recommended diameter is 5 1/2-in to 6 1/2-in.

Continue breaking the concrete around the pipe and remove debris as needed with a shop vac. The hole is complete when 3-in depth is achieved at the required hole diameter range.

Using a speed square and permanent marker, mark the exact slab height onto the pipe. Using a hack saw or other means, cut the PVC waste pipe above the subfloor elevation mark you made with the permanent marker. To prevent debris from entering the waste pipe, stuff a cloth inside and below the cutting area. Once the cut is complete, vacuum out the debris and remove the cloth.

Using an inside hole saw and tape measure, carefully mark waste pipe exactly 1 5/8-in below the slab elevation. Cut through the pipe slowly to produce a level cut around the perimeter. Using a file, debur the pipe and clean out all of the remaining debris around and inside the waste pipe.

Warranty

HIGH PERFORMANCE - TRUSTED QUALITY

The GoBoard product line includes Polyiso foam board panels, a versatile shower pan kit, and essential tile backer accessories that when installed as a system, can qualify for a manufacturer limited warranty. Need help with one of our products? Contact us with your warranty questions, or download the warranty certificate in the documents above.
