Rapid-Lok Ultra Coping

Product Descriptive Name: Single Ply and Multi Ply Fascia System
Product Short Description: Rapid-Lok Ultra Coping System offers convenience and economical pricing to simplify projects and maximize profits. Our Rapid-Lok Ultra Coping for single ply and multi ply roofs helps protect the roof system against high wind events, saving the building from costly damage. With a 0.50" slope from front to back, it caps the top of a parapet wall to impede water infiltration, and provides for an architectural feature at the top of the wall.

Product Details

Rapid-Lok Ultra Coping

Product Long Description

Features

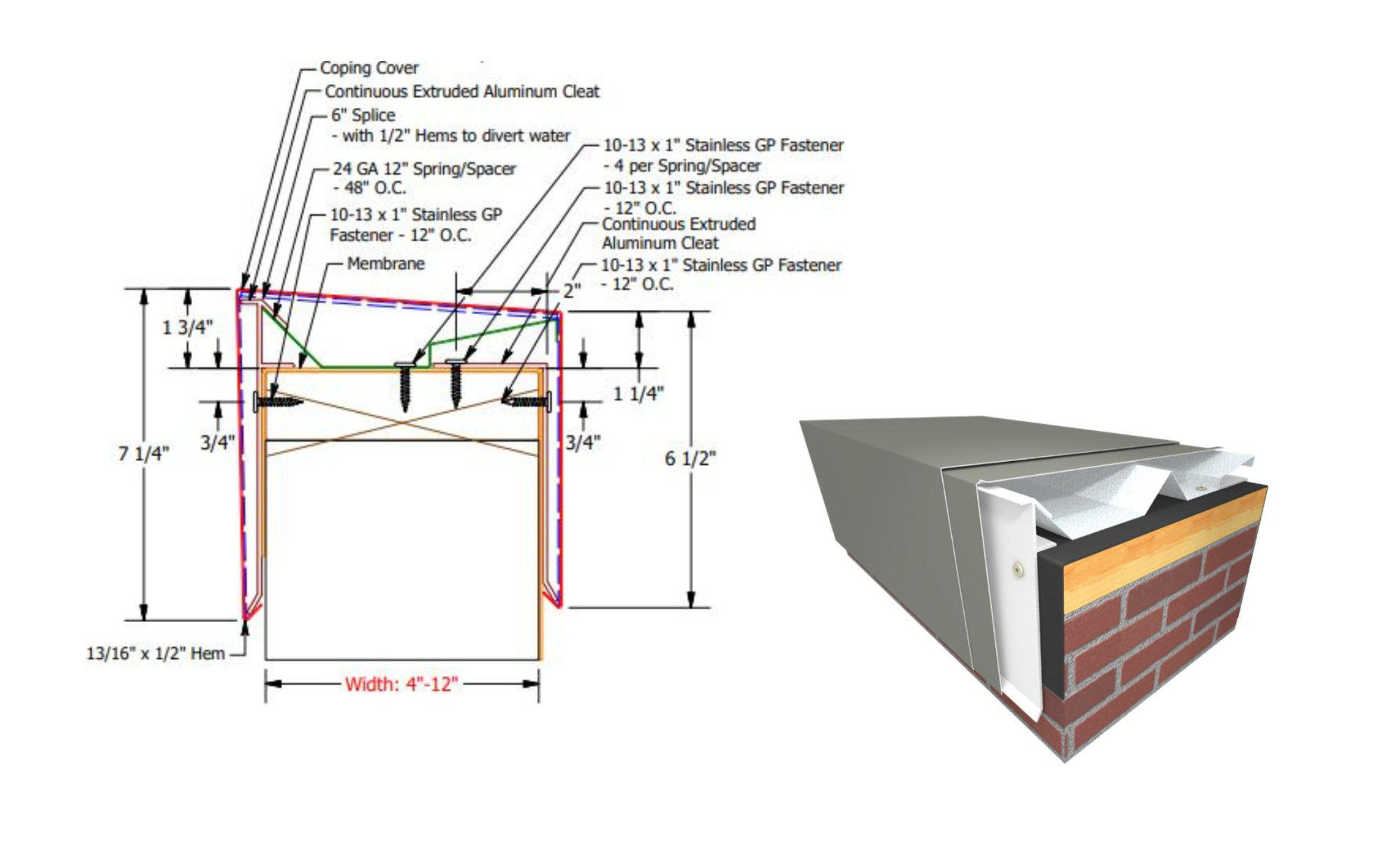

Rapid-Lok Ultra Coping

Features

Anchor Cleat: 12' (3.7 m) lengths, 24 gauge (1.00 mm) formed metallic coated steel, preslotted 12" (30.48 cm) o.c. with 6" (15.24 cm) wide stainless steel spring clips.

Fasteners: 10-13 x 1" GP Fasteners - 12" o.c. Masonry fasteners available upon request.

Coping Cover: Covers in 12' (3.7 m) lengths, available in 24, 22 ga. metallic coated steel and 0.040", 0.050" & 0.063" aluminum. other metals available upon request. Factory "notched" to provide a 1" (12.54 cm) lap joint.

Finishes: Offered in 70% PVDF finish, as well as Clear Satin or Dark Bronze anodized aluminum; choose from over 40 stock colors or custom colors. Request a color chart or samples for additional details.

Accessories: Factory-fabricated corners, overflow and spillout scuppers, downspout sumps, radius and special angles, extenders and soffit clip systems are also available.
