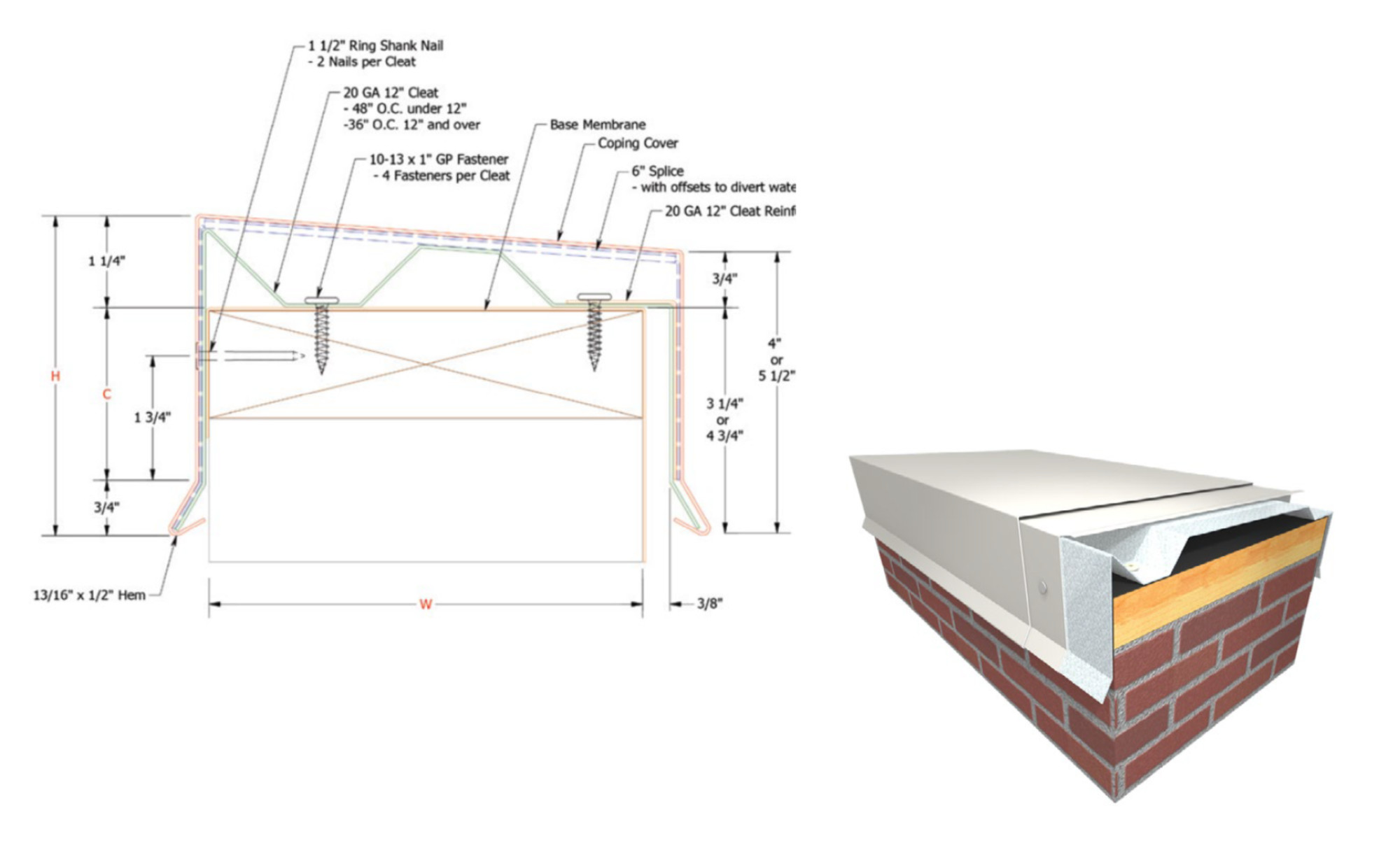

Anchor Cleat: 12" (304.8 mm) lengths, 20 gauge (1.00 mm) formed metallic coated steel chair/cleats with gutter/splices.
Fasteners: 1 1/2" Ring Shank Nails & 10-13 x 1" GP Fasteners. Masonry fasteners available upon request.
Coping Cover: Covers in 12' (3.7 m) lengths, available in 24, 22 ga. metallic coated steel and 0.040", 0.050" & 0.063" aluminum. other metals available upon request. Factory "notched" to provide a 1" (12.54 cm) lap joint.
Finishes: Offered in 70% PVDF finish, as well as Clear Satin or Dark Bronze anodized aluminum; choose from over 40 stock colors or custom colors. Request a color chart or samples for additional details.
Accessories: Factory-fabricated corners, overflow and spillout scuppers, downspout sumps, radius and special angles, extenders and soffit clip systems are also available.
