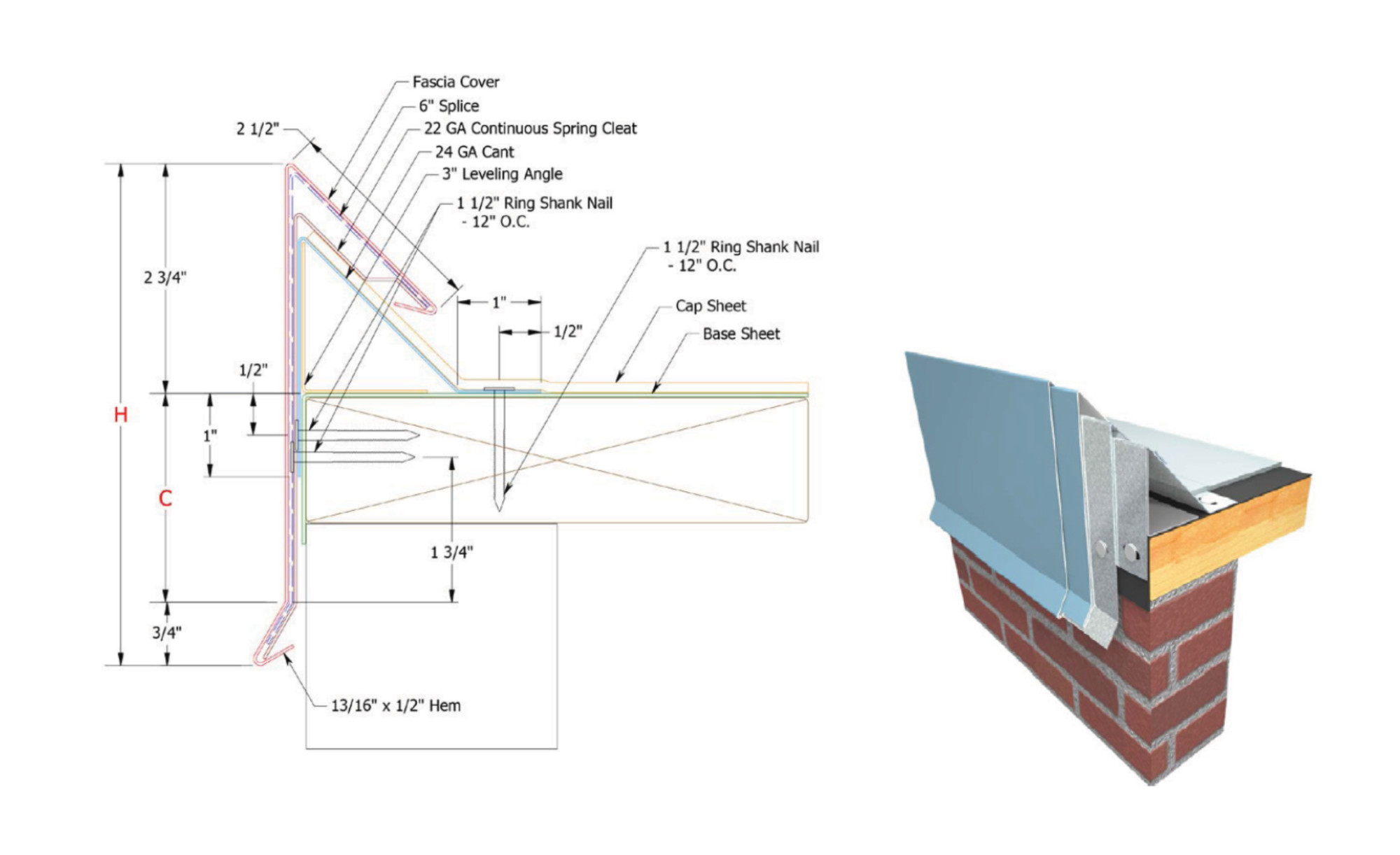

Anchor Cleat: 12' (3.7 m) lengths, 24 gauge (1.00 mm) formed metallic coated steel, preslotted 12" (30.48 cm) o.c. with 6" (15.24 cm) wide stainless steel spring clips.
Fasteners: 1 1/2" Ring Shank Nails - 12" o.c. Masonry fasteners available upon request.
Fascia Cover: Snap-On covers in 12' (3.7 m) lengths, available in 24, 22 ga. metallic coated steel and 0.040", 0.050" & 0.063" aluminum, other metals available upon request. Factory "notched" to provide a 1" (2.54 cm) lap joint.
Finishes: Offered in 70% PVDF finish, as well as Clear Satin or Dark Bronze anodized aluminum; choose from over 40 stock colors or custom colors. Request a color chart or samples for additional details.
Accessories: Factory-fabricated corners, overflow and spillout scuppers, downspout sumps, radius and special angles, extenders and soffit clip systems are also available.
